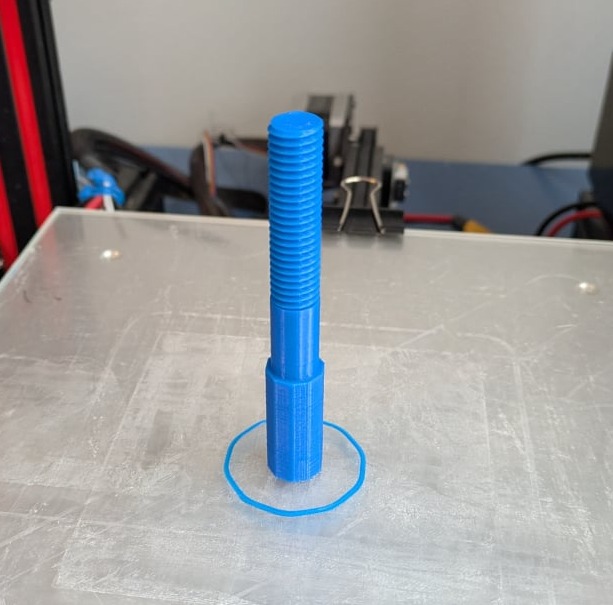

Threaded bolt
Used to screw the holder in place.
Supports: NO
Resolution: 0.2mm layer height, 4 top/bottom surfaces and 2 perimeters
Infill: 20%
Used to screw the holder in place.
Supports: NO
Resolution: 0.2mm layer height, 4 top/bottom surfaces and 2 perimeters
Infill: 20%

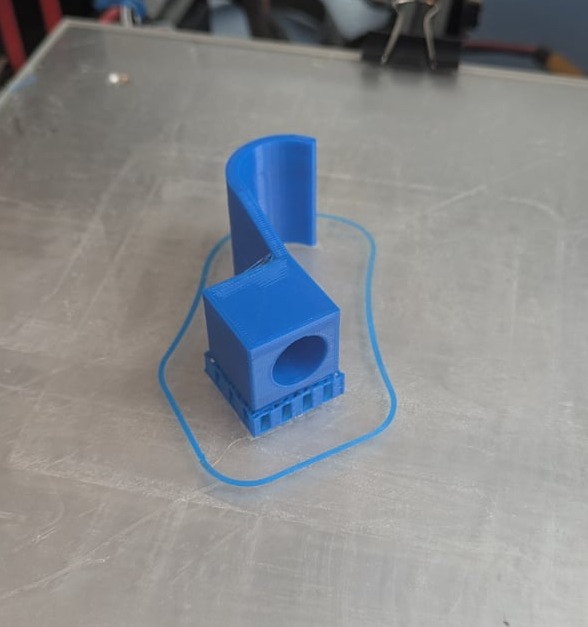

The threaded bolt will tighten this piece against the phone to hold it in place.
Support Overhang Angle: 45.0
Support Pattern: Lines
Support Top Distance: 0.4mm
Support Placement: Touching build plate
Resolution: 0.2mm layer height, 4 top/bottom surfaces and 2 perimeters
Infill: 20%

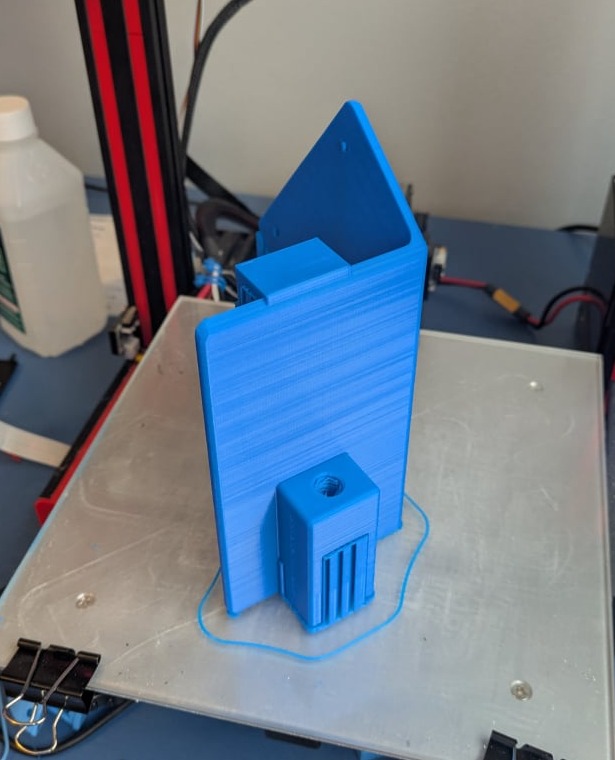

This along with the bolt and threaded holder will secure the phone at a 45 degree angle from the pistol stock. Secure this piece into the pistol stock with two size 6x - 3/4 inch flat head wood screws.
Support Overhang Angle: 45.0
Support Pattern: Lines
Support Top Distance: 0.4mm
Support Placement: Touching build plate
Resolution: 0.2mm layer height, 4 top/bottom surfaces and 2 perimeters
Infill: 20%

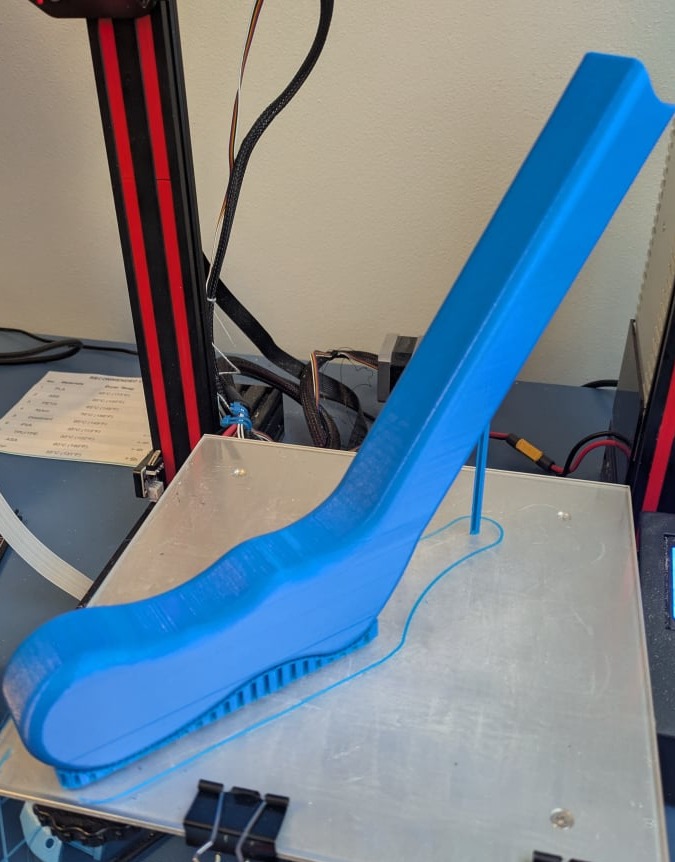

The main pistol stock to mount your scope onto. Drill pilot holes and secure scope with wood screws. There is a printed guideline along the top.
Support Overhang Angle: 45.0
Support Pattern: Lines
Support Top Distance: 0.4mm
Support Placement: Touching build plate
Resolution: 0.2mm layer height, 4 top/bottom surfaces and 2 perimeters
Infill: 50%

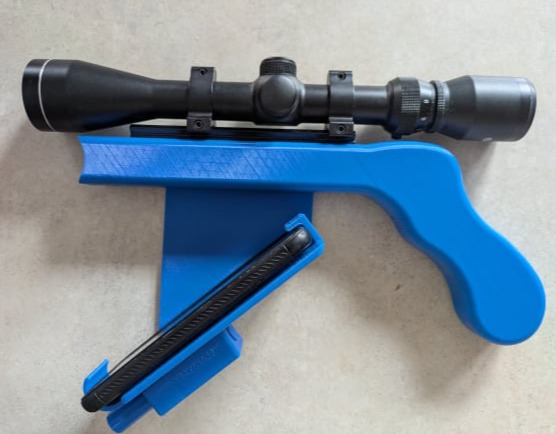

Finished Product
